Workflows

Workflows are where everything comes together. They transform AI understanding into reliable, repeatable automation by combining context awareness, secure tool execution, and intelligent orchestration into structured processes your team can trust.

What Makes Kubiya Workflows Different

AI-Generated, Human-Governed

Unlike traditional automation that requires manual scripting, Kubiya workflows start with natural language: You say: “Deploy the payment service to staging and run tests” Kubiya creates: A workflow that uses your existing tools (kubectl, helm, etc.) and follows your deployment patterns, but executes reliably every time.

Deterministic Execution

Once generated, workflows execute the same way every time:

Same input → Same output: No variation between executions
Predictable behavior: Every step follows defined logic
Reproducible results: Easy to debug and troubleshoot
Audit trail: Complete record of every action taken

Context-Aware Intelligence

AI generates workflows that understand your specific environment by reading your existing configurations, deployment patterns, and infrastructure setup.

Workflow Creation Methods

1. Natural Language Generation

Start with a conversational description:

Examples of effective prompts:

“Scale down development environments after 6 PM to save costs”
“When CPU usage exceeds 80% for 5 minutes, automatically scale up”
“Create a runbook for investigating database connection issues”
“Set up automated testing for every pull request”

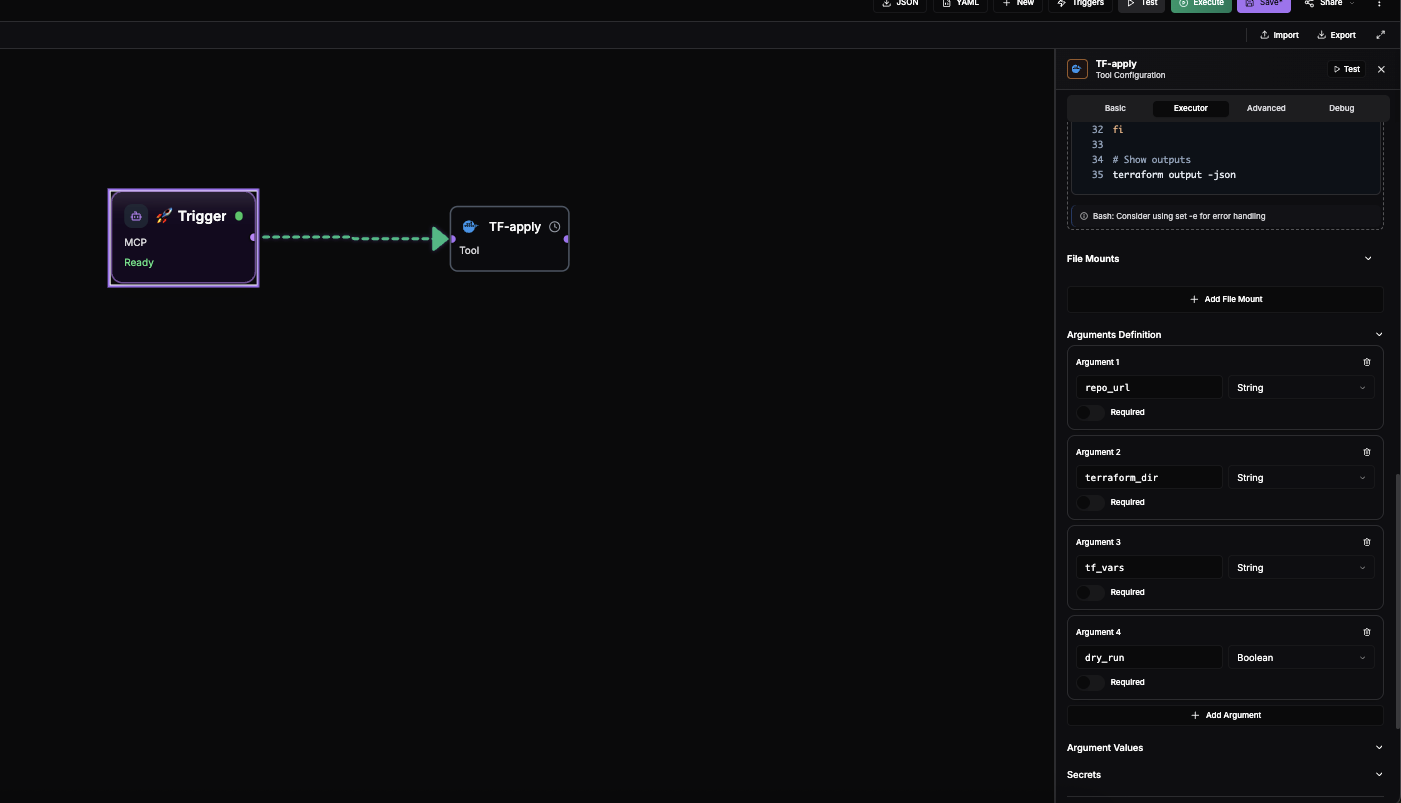

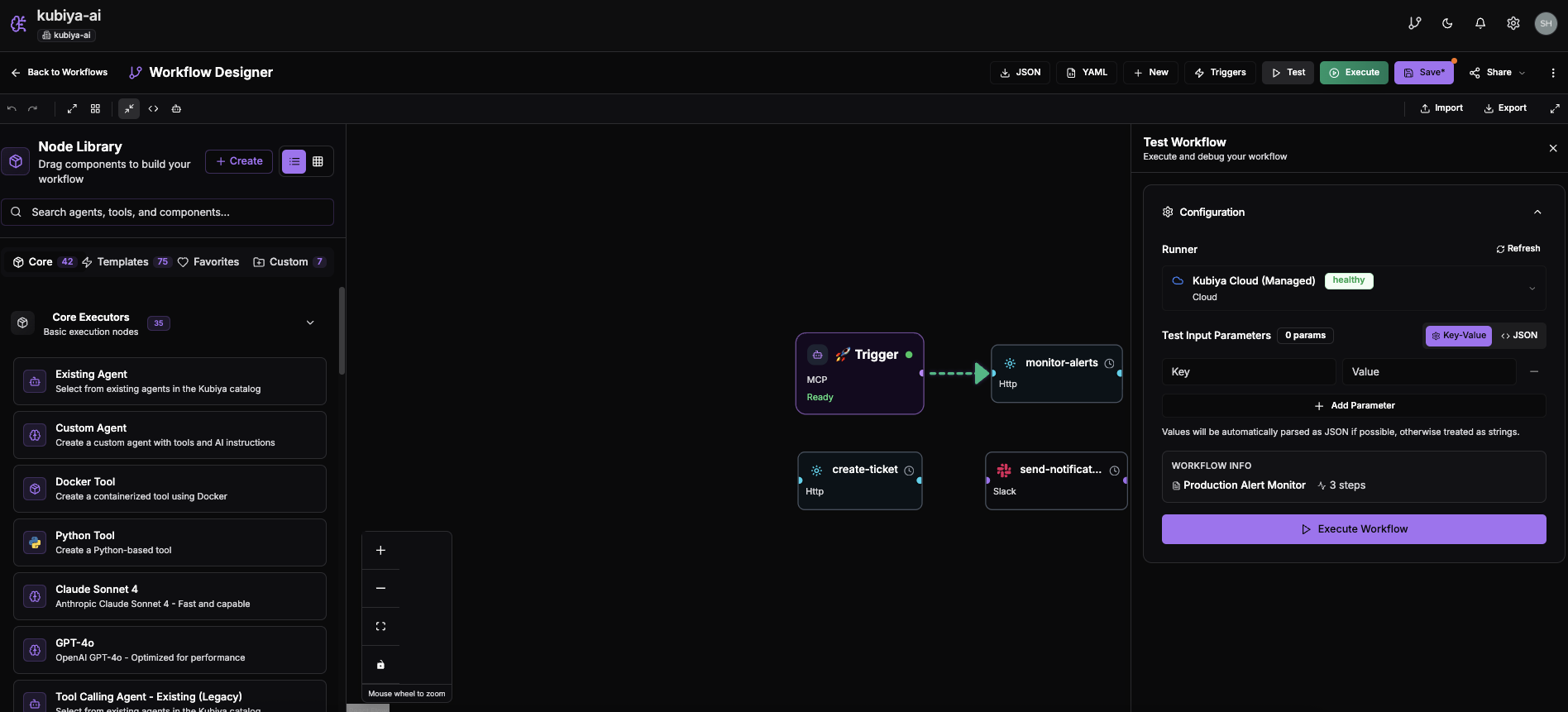

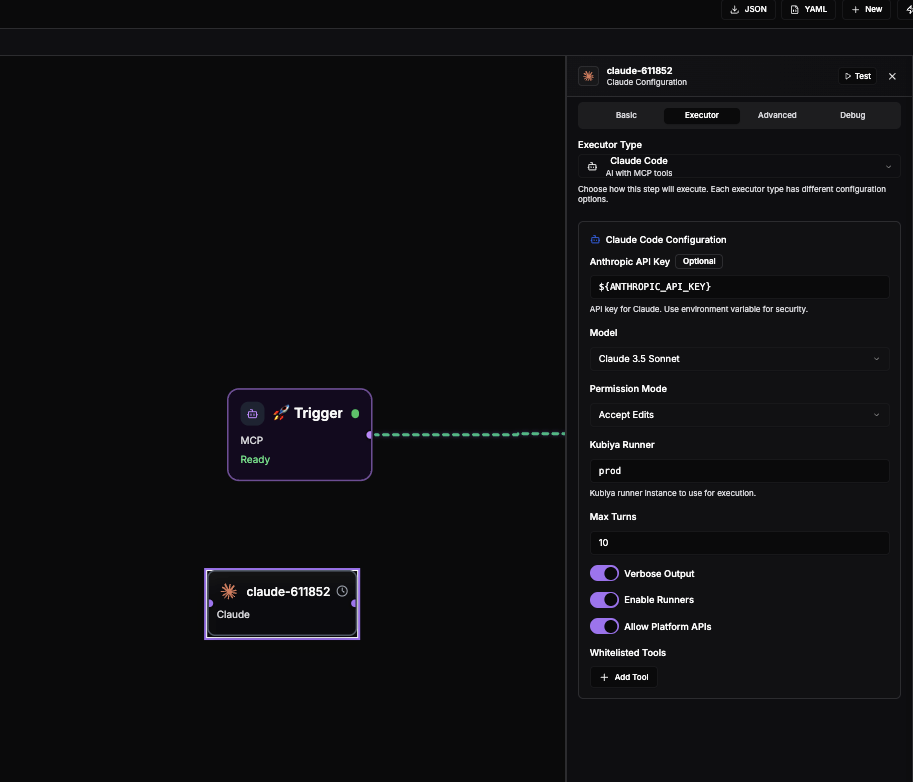

2. Visual Workflow Designer

Build complex workflows with drag-and-drop components:

The visual designer includes:

Flow Control

Conditions, loops, parallel execution, error handling

Tool Integration

Direct access to all your connected systems and tools

Data Transformation

JSON processing, templating, data validation, formatting

Human Approval

Manual approval steps for sensitive operations

3. Code-First Workflows

Define workflows as code for version control and automation:

from kubiya_sdk import Workflow, Step

# Python DSL for complex logic
@workflow
def incident_response(severity: str, service: str):
    """Automated incident response workflow"""

    # Gather initial information
    logs = Step("collect-logs").tool("log-aggregator").inputs(
        service=service,
        timeframe="30m"
    )

    metrics = Step("get-metrics").tool("monitoring-client").inputs(
        service=service,
        metrics=["cpu", "memory", "error_rate"]
    )

    # Parallel information gathering
    info_gathering = Parallel([logs, metrics])

    # Analysis step that uses gathered data
    analysis = Step("analyze-issue").tool("ai-analyzer").inputs(
        logs=logs.outputs.log_content,
        metrics=metrics.outputs.metric_data,
        severity=severity
    ).depends_on(info_gathering)

    # Conditional remediation based on analysis
    if analysis.outputs.recommended_action == "scale":
        remediation = Step("auto-scale").tool("scaler").inputs(
            service=service,
            scale_factor=analysis.outputs.scale_factor
        )
    elif analysis.outputs.recommended_action == "restart":
        remediation = Step("rolling-restart").tool("restarter").inputs(
            service=service,
            strategy="rolling"
        )
    else:
        remediation = Step("manual-intervention").tool("pager").inputs(
            message=f"Manual intervention required: {analysis.outputs.details}"
        )

    return Workflow([info_gathering, analysis, remediation])

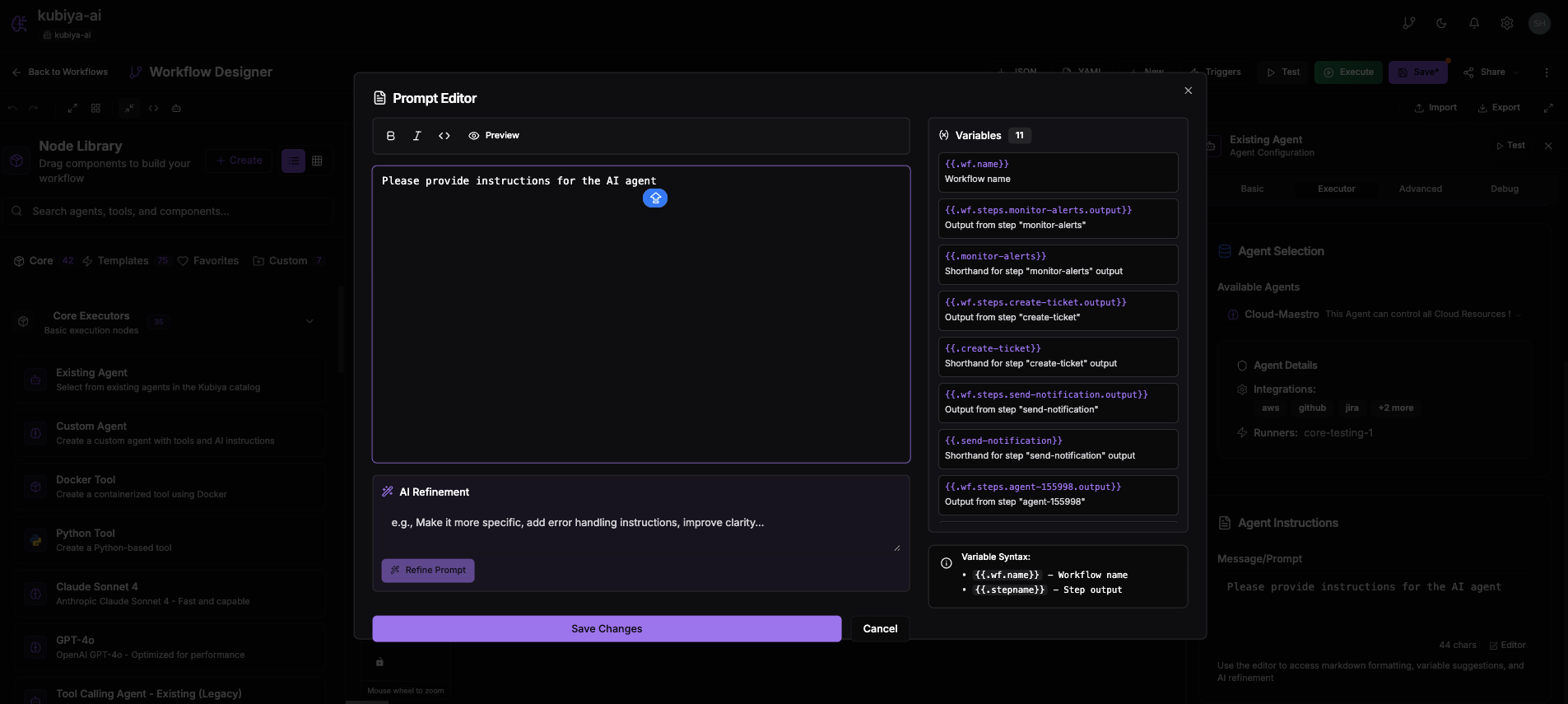

4. Template-Based Creation

Start with proven patterns and customize:

DevOps Templates

Deployment pipelines, rollback procedures, health checks

SRE Templates

Incident response, capacity planning, chaos testing

Security Templates

Vulnerability scanning, compliance checks, access reviews

Cost Optimization

Resource cleanup, rightsizing, budget alerts

Advanced Workflow Features

Error Handling & Recovery

Workflows include comprehensive error handling:

steps:
  - name: deploy-application
    tool: kubernetes-deployer
    retry:
      max_attempts: 3
      backoff: exponential
      on_failure:
        - name: collect-failure-logs
          tool: log-collector
        - name: rollback-deployment
          tool: kubernetes-rollback
        - name: notify-team
          tool: slack-notifier
          inputs:
            channel: "#incidents"
            message: "Deployment failed, rolled back automatically"

Conditional Logic & Branching

Smart workflows adapt based on conditions:

steps:
  - name: check-environment-load
    tool: monitoring-check

  - name: choose-deployment-strategy
    condition_branches:
      - condition: ${check-environment-load.cpu_usage} > 80
        steps:
          - name: gradual-rollout
            tool: canary-deployer
            inputs:
              traffic_split: [5%, 20%, 50%, 100%]

      - condition: ${check-environment-load.cpu_usage} < 40
        steps:
          - name: fast-deployment
            tool: blue-green-deployer

      - default: true
        steps:
          - name: standard-rollout
            tool: rolling-deployer

Parallel Execution

Optimize performance with concurrent operations:

# Run multiple health checks in parallel
parallel_health_checks:
  - name: database-health
    tool: postgres-checker

  - name: cache-health
    tool: redis-checker

  - name: api-health
    tool: http-checker
    inputs:
      endpoints: ["https://api.example.com/health"]

# Wait for all parallel tasks before proceeding
- name: aggregate-results
  tool: health-aggregator
  depends_on: [database-health, cache-health, api-health]

Human Approval Gates

Include manual checkpoints for sensitive operations:

- name: request-production-approval
  tool: approval-gate
  inputs:
    approvers: ["@platform-team", "@security-team"]
    timeout: 2h
    approval_message: |
      Production deployment requested:
      - Service: ${SERVICE_NAME}
      - Version: ${BUILD_VERSION}
      - Impact: ${ESTIMATED_IMPACT}
      - Rollback plan: Available

- name: deploy-to-production
  tool: production-deployer
  condition: ${request-production-approval.approved} == true
  depends_on: [request-production-approval]

Workflow Execution & Monitoring

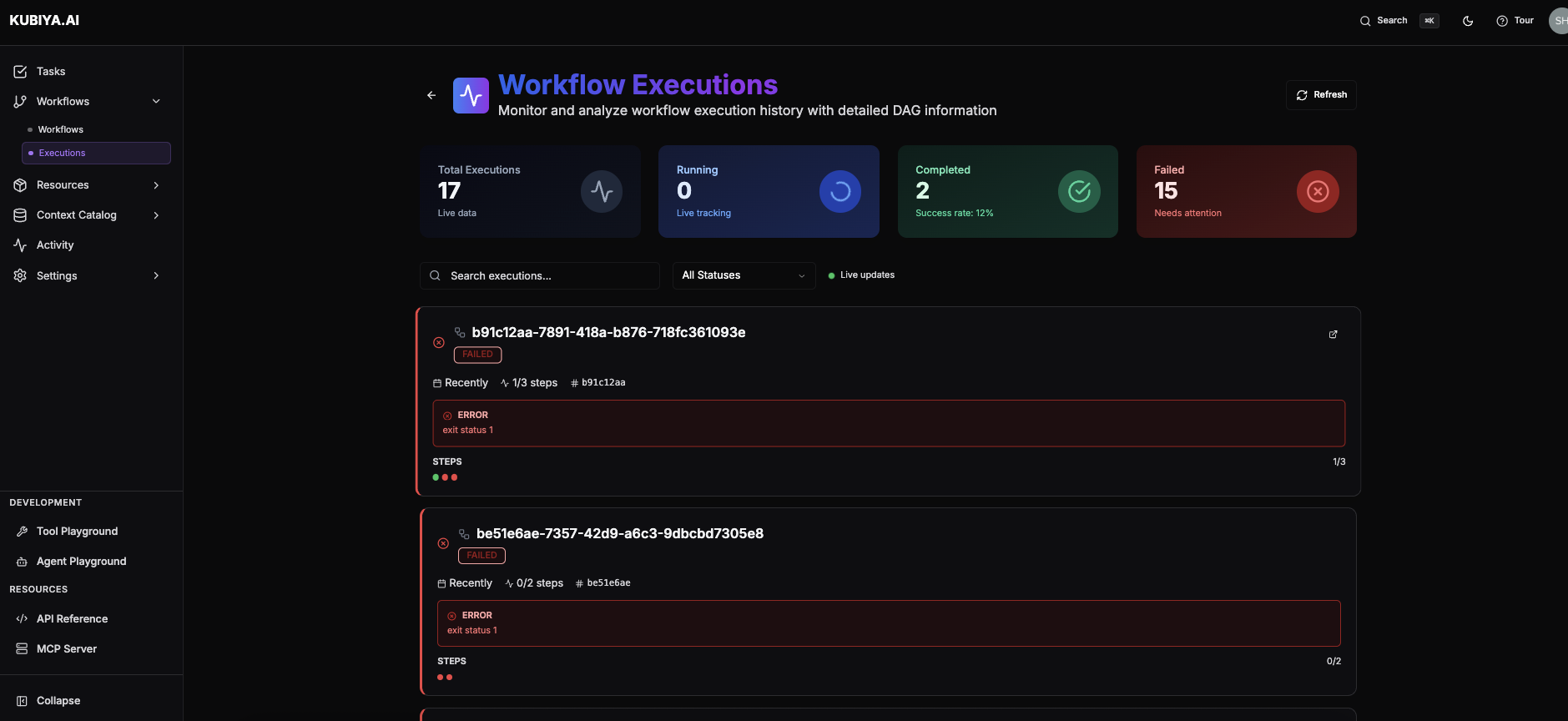

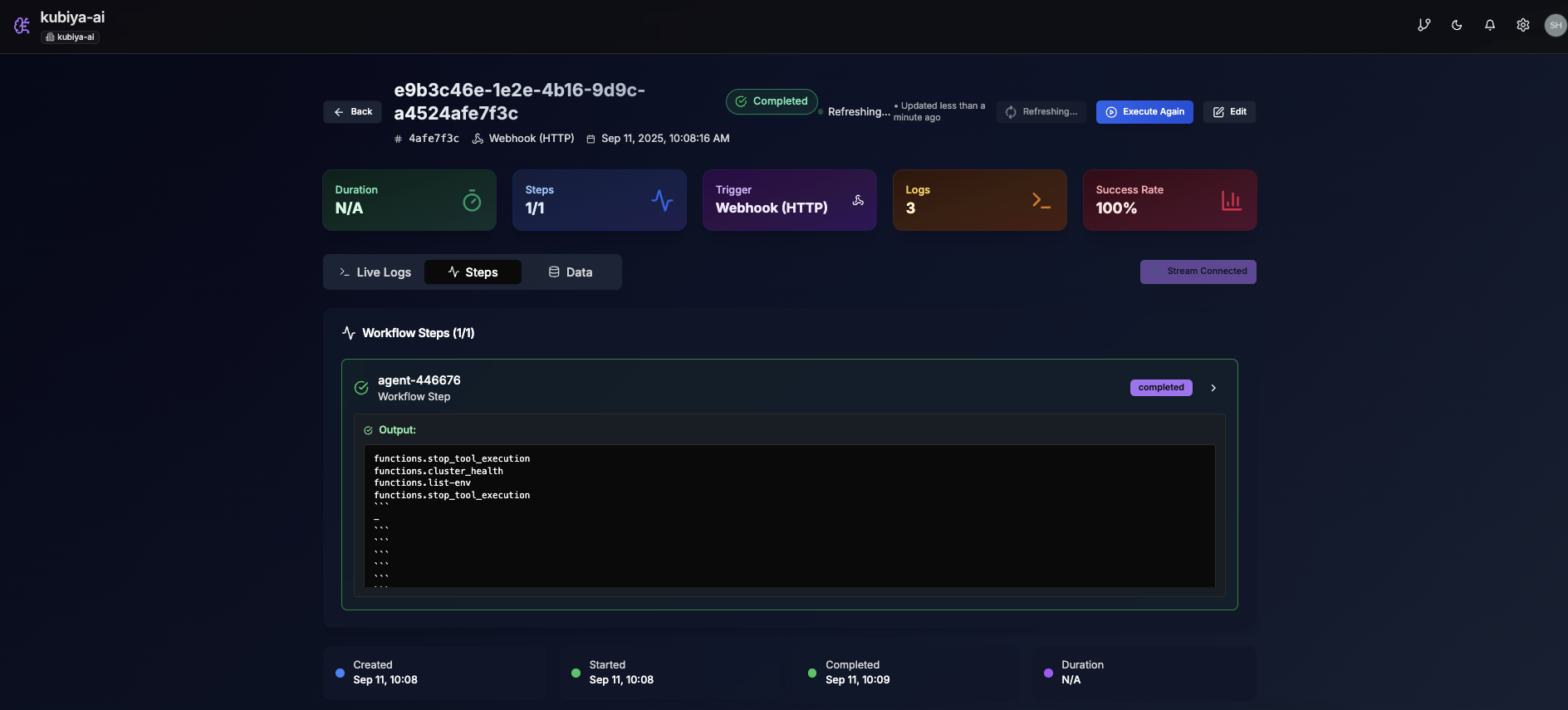

Real-Time Execution Tracking

Monitor workflows as they run:

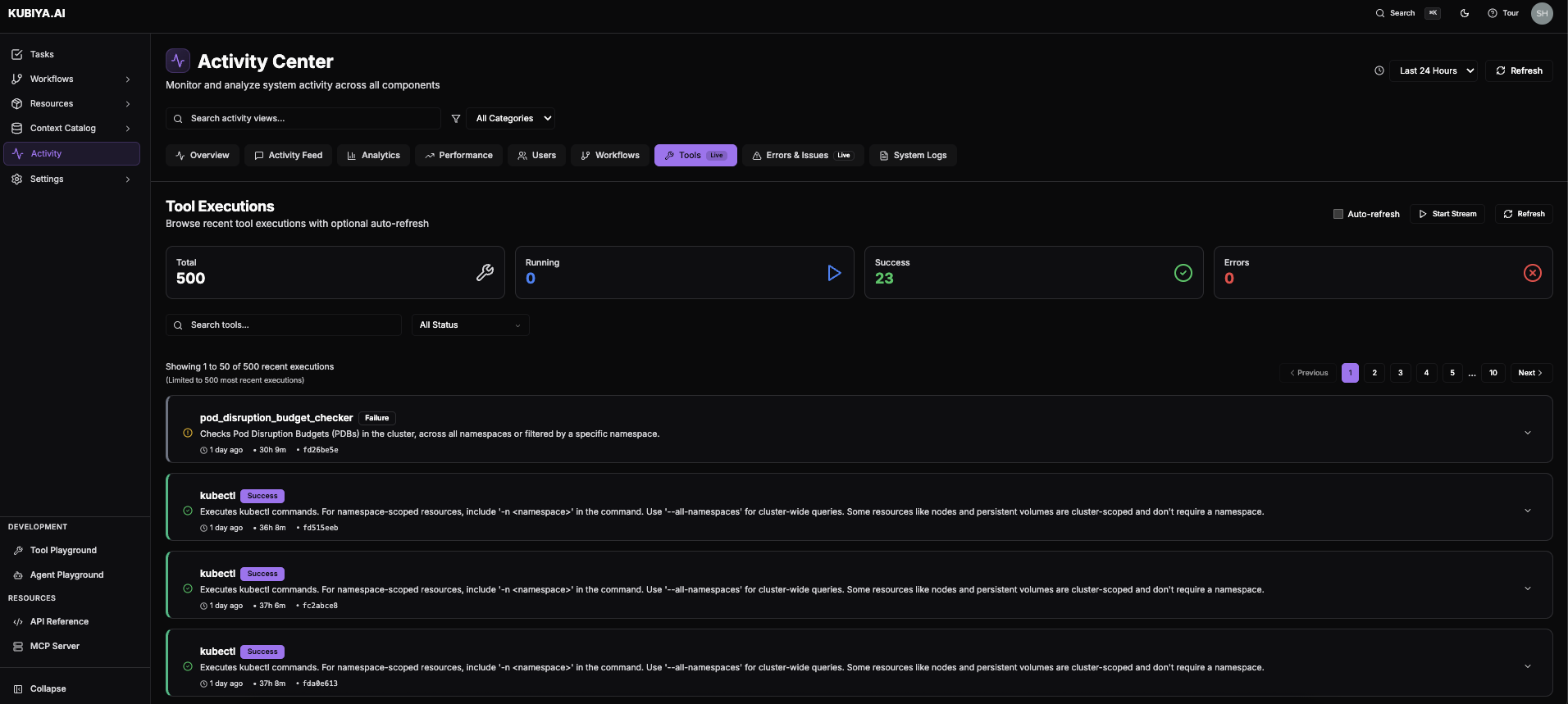

Performance Analytics

Track key metrics:

Execution time per step and overall workflow
Success rate and failure patterns
Resource usage during execution
Cost per execution across different environments

Alerting & Notifications

Stay informed about workflow execution:

notifications:
  on_start:
    - slack: "#deployments"
      message: "🚀 Starting ${WORKFLOW_NAME}"

  on_success:
    - slack: "#deployments"
      message: "✅ ${WORKFLOW_NAME} completed successfully"
    - email: "platform-team@company.com"

  on_failure:
    - slack: "#incidents"
      message: "❌ ${WORKFLOW_NAME} failed at step ${FAILED_STEP}"
    - pagerduty:
        service: "platform-automation"
        severity: "warning"

  on_human_approval_needed:
    - slack: "@channel in #approvals"
      message: "🔒 Approval required for ${WORKFLOW_NAME}"

Workflow Lifecycle Management

Version Control Integration

# .kubiya/workflows/payment-deployment.yaml
apiVersion: kubiya.ai/v1
kind: Workflow
metadata:
  name: payment-service-deployment
  version: "2.1.0"
  labels:
    team: payments
    criticality: high
    environment: production

Testing & Validation

Test workflows before production use:

# Workflow testing framework
import pytest
from kubiya_sdk.testing import WorkflowTest

class TestPaymentDeployment(WorkflowTest):
    def setUp(self):
        self.workflow = self.load_workflow('payment-deployment')
        self.mock_environment('staging')

    def test_successful_deployment(self):
        # Mock successful responses from all tools
        self.mock_tool_success('kubernetes-deployer')
        self.mock_tool_success('test-runner')

        result = self.workflow.execute()

        assert result.status == 'completed'
        assert len(result.steps) == 4
        assert result.steps[-1].name == 'production-deployment'

    def test_rollback_on_test_failure(self):
        # Mock test failure
        self.mock_tool_failure('test-runner', error='Integration tests failed')

        result = self.workflow.execute()

        assert result.status == 'failed'
        assert 'rollback' in [step.name for step in result.executed_steps]

Best Practices

Workflow Design Principles

Idempotent Operations

Design steps that can be safely re-run without side effects

Fail Fast

Check prerequisites early to avoid wasting time and resources

Clear Dependencies

Make step dependencies explicit for reliable execution order

Comprehensive Logging

Log all decisions and actions for debugging and audit

Security Considerations

security:
  # Least privilege - only necessary permissions
  permissions:
    - resource: "deployments"
      namespace: "payment-service"
      actions: ["get", "update", "patch"]

  # Sensitive data handling
  secrets:
    - name: database_password
      source: vault://production/database/password
      inject_as: environment_variable

  # Approval requirements for sensitive operations
  approvals:
    - condition: environment == "production"
      required_approvers: 2
      allowed_approvers: ["@platform-team", "@security-team"]

Pro Tip: Start with read-only workflows to build confidence, then gradually add write operations as your team becomes comfortable with the automation patterns.

What’s Next?

With workflows providing structured automation, explore real-world use cases that show how teams apply these concepts to solve common infrastructure and operations challenges.

Use Cases →

See how teams use workflows to automate common operations

Build Your First Workflow

Step-by-step guide to creating and running workflows
